Tired of inaccurate color reproduction, monotonous lighting and flat, unlayered shots? Meet the Ablelite SP302 & SP700 professional 6-color LED panel lights. Ideal for live streaming, portrait photography, short films and studio productions, they deliver all-round atmospheric lighting solutions for creators.
Core Premium Light Performance for Superior Footage

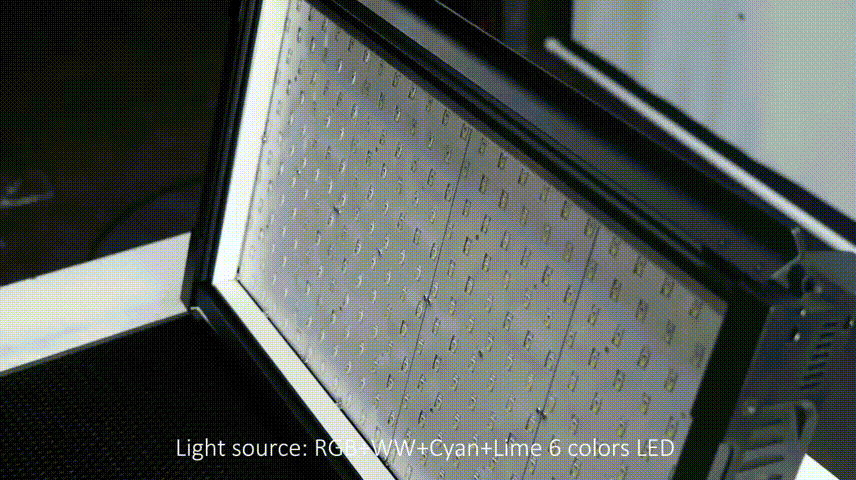

Both fixtures adopt a 6-in-1 LED chip array: RGB + Warm White + Cyan + Lime, supporting stepless color mixing with built-in preset color palettes. Even at low brightness, color blending remains uniform without patchy light separation.
CRI ≥95 high color rendering, faithfully reproducing true skin tones and product textures
2800K–10000K full linear CCT adjustment; fine-tune magenta/green tint under fixed color temperature
Smooth 0–100% dimming without vignetting; integrated dynamic lighting effects with adjustable speed,
1–25Hz strobing pulse effects for creative short videos and trendy clips;
PWM frequency adjustable from 600Hz to 50kHz, eliminating flicker bands in camera footage for clean live streams and recordings.

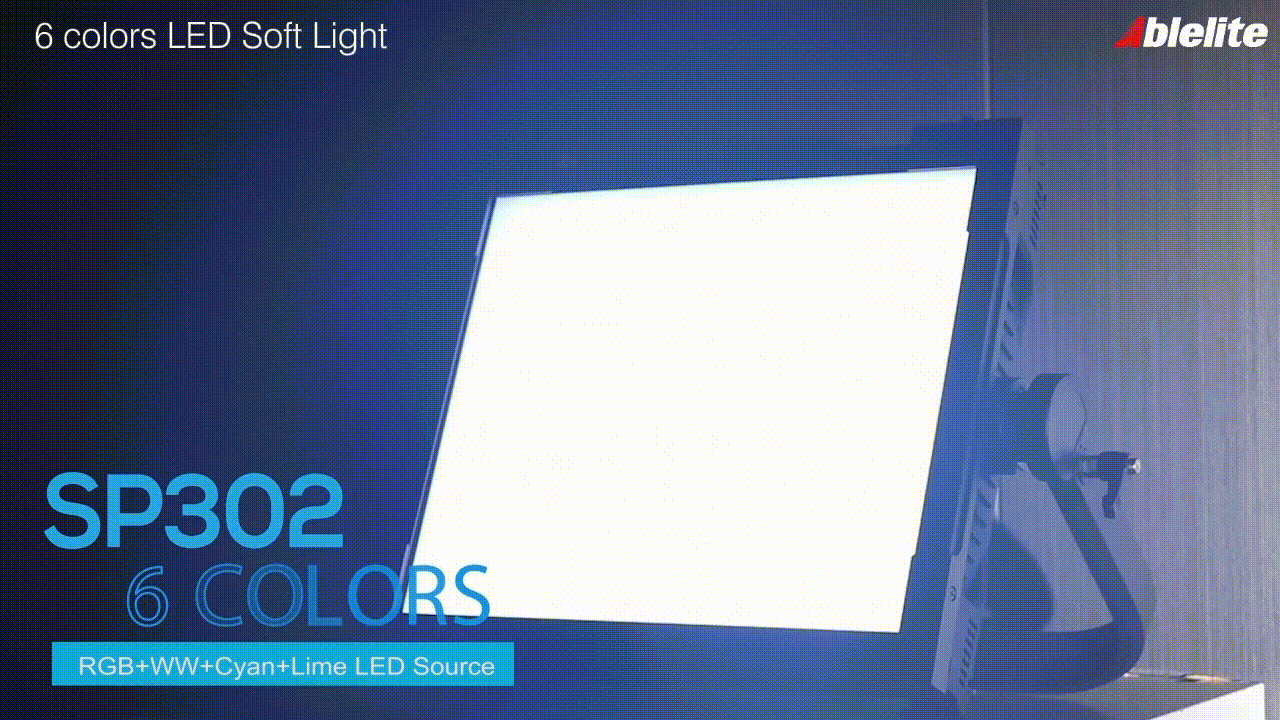

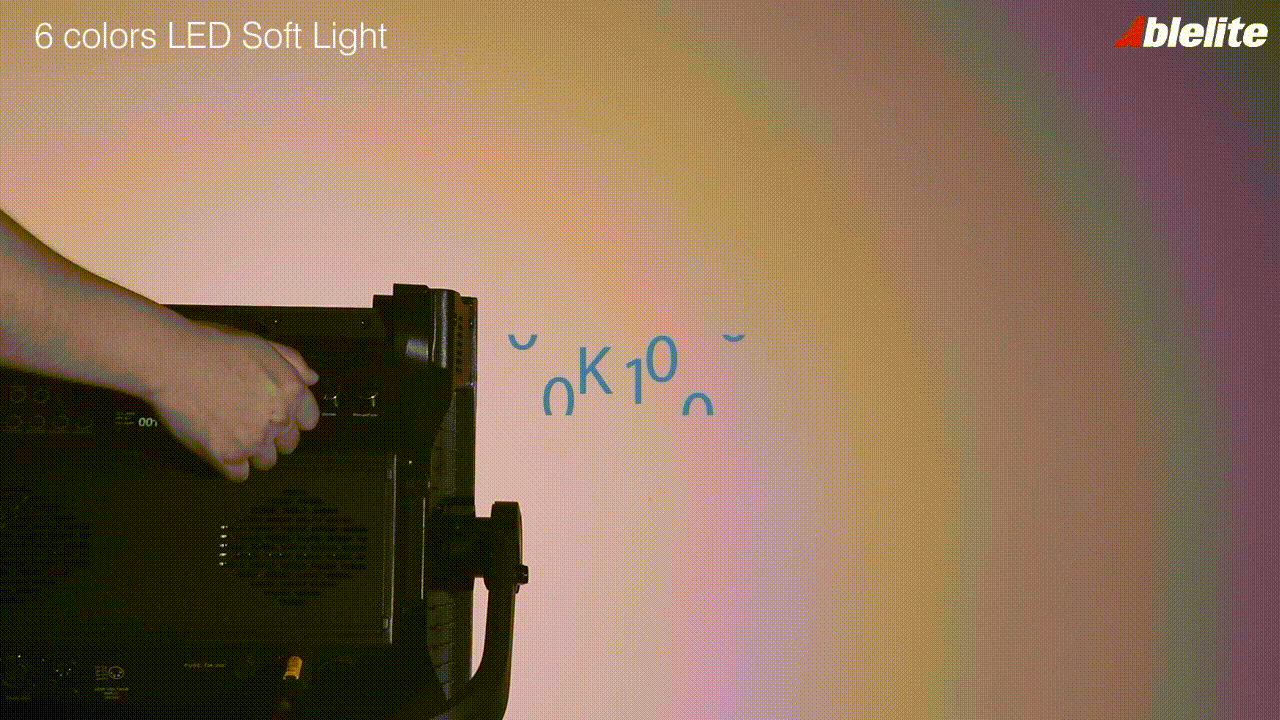

SP302: Dual upper/lower zones for separate adjustment, enabling layered lighting and segmented scene shaping.
SP700: Four independent segmented panels for flexible lighting in multi-subject and complex stage scenarios.

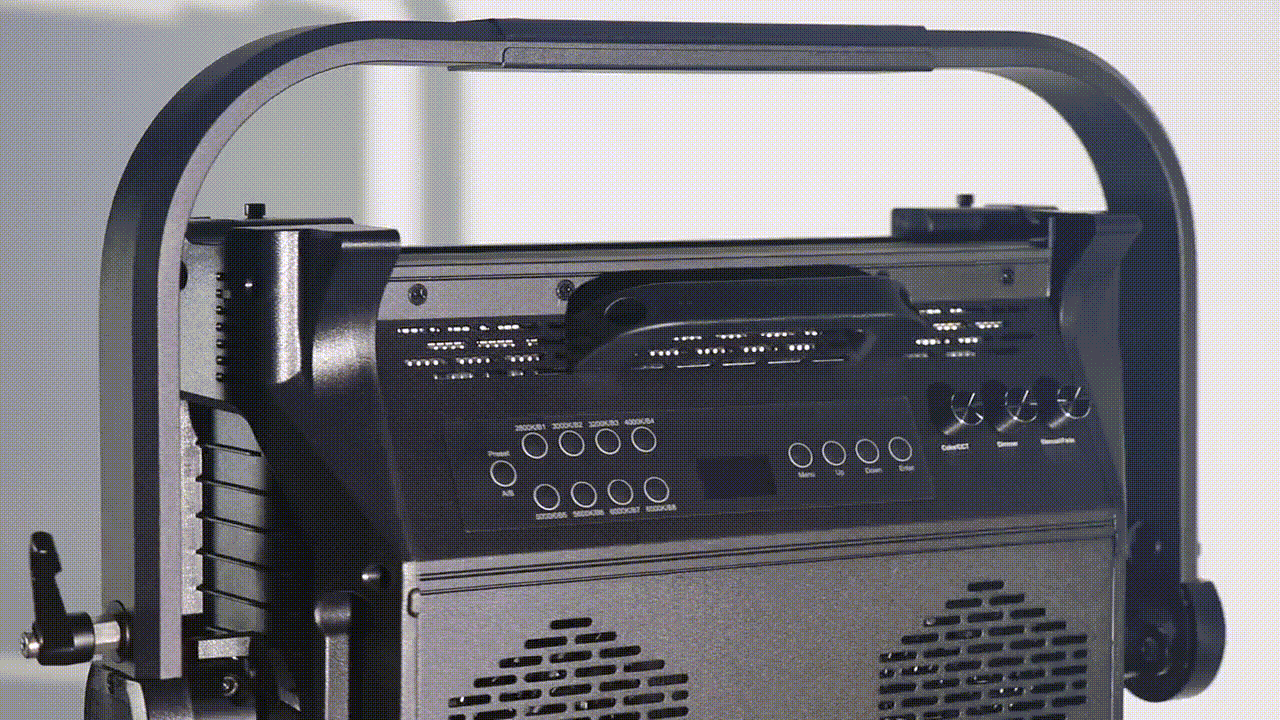

Equipped with physical adjustment knobs for instant brightness, CCT and hue tuning, paired with a bilingual OLED display (Chinese & English menus) for intuitive operation, friendly for new operators.
Medium diffusion filter comes as standard for both models, with different native beam angles:
SP302: 140° ultra-wide flood angle for full-area even lighting, perfect for live rooms and full-body portrait shots.
SP700: 113° soft beam angle with higher luminous output, 810lux at 5m, high-power solution for professional studios and theatres.

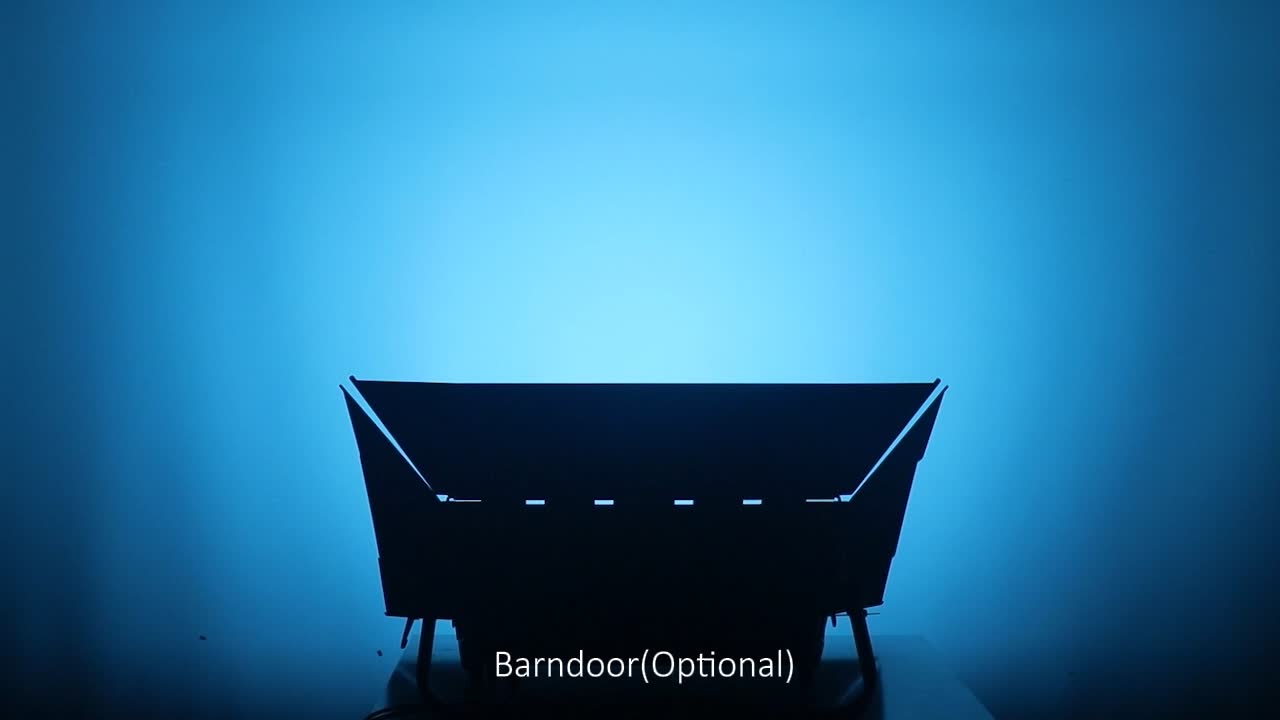

Optional accessories include light/heavy diffusion filters, 30°/60° honeycomb grids and 4-leaf barn doors to narrow light beams, block stray light and shape soft/hard shadow textures as needed.
Complete DMX lighting control system with multi-channel modes, supporting RDM remote device management. DMX and dual USB ports allow on-board firmware upgrades. The fixture auto-sleeps after DMX disconnection to save energy.
WDMX wireless control available as an optional upgrade for synchronized multi-light rigs.
IP20 ingress protection, full aluminum alloy housing with low-noise cooling fans; stable long-hour operation without overheating and minimal noise.

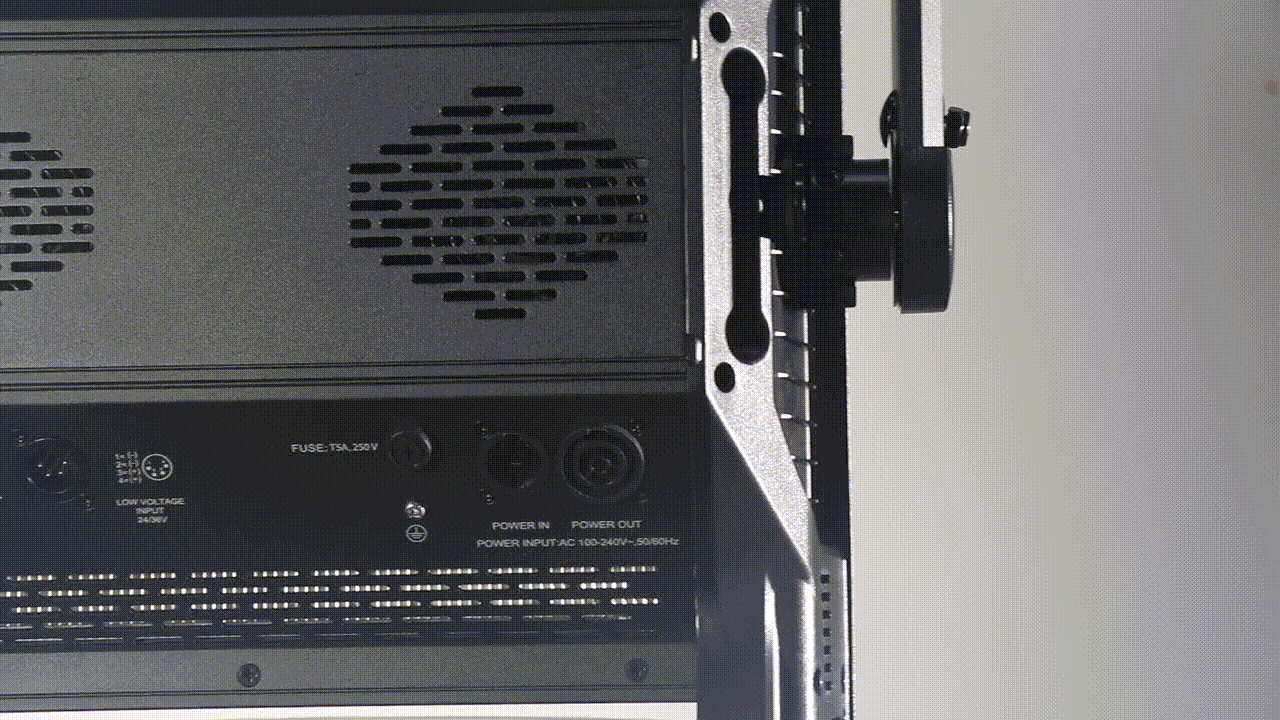

PowerCON loop-through power and 5-pin XLR signal daisy chain for tidy multi-light wiring PowerCON.
Universal 100–240V wide voltage input, suitable for indoor and location shooting 100-240V.
Dimensions: 60.5×51.5×25.5cm, Net Weight: 9.44KG – portable and easy to transport.
Full-bright luminous flux: 17447lm, Illuminance: 455lux at 5m.
Dual zoned control, cost-effective choice.
Best for solo creators, mid-sized live streaming rooms, portrait studios and independent short film production .
Dimensions: 76.9×54.9×12.9cm, Net Weight: 14KG.
Luminous flux: 43383lm, Illuminance: 810lux at 5m.
Four independent segmented control zones.
Designed for professional TV studios, theatre stages, commercial advertising and large live stream teams with heavy-duty commercial use.
E-commerce live streaming | Portrait & fashion photography | Short films & micro-movies | Product still shooting | Theatre stage performance | Interview studio programs.
One unit covers cool & warm white light, creative color light and layered lighting effects. Build your exclusive shooting lighting space at home or studio! Feel free to leave a message if you need lighting schemes or accessory matching suggestions.
