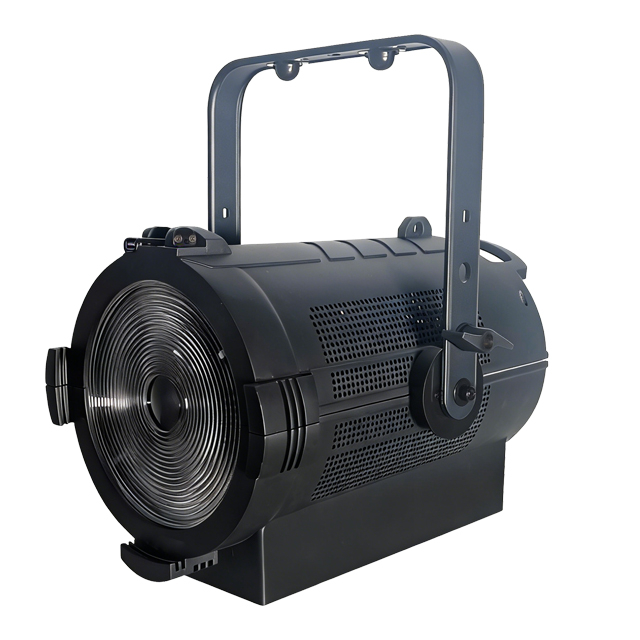

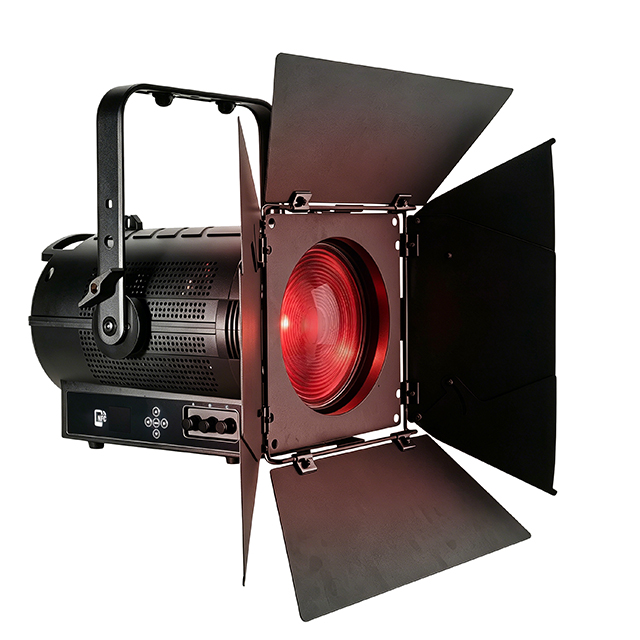

Type：350W LED Fresnel - RGBAL
OPTICS
Source: 350W 6 colour LEDs source
Source life: > 50.000 h
Total Lumen Output: 8'86 lm@9,8°- 11'652 lm@72°(Goniometer)

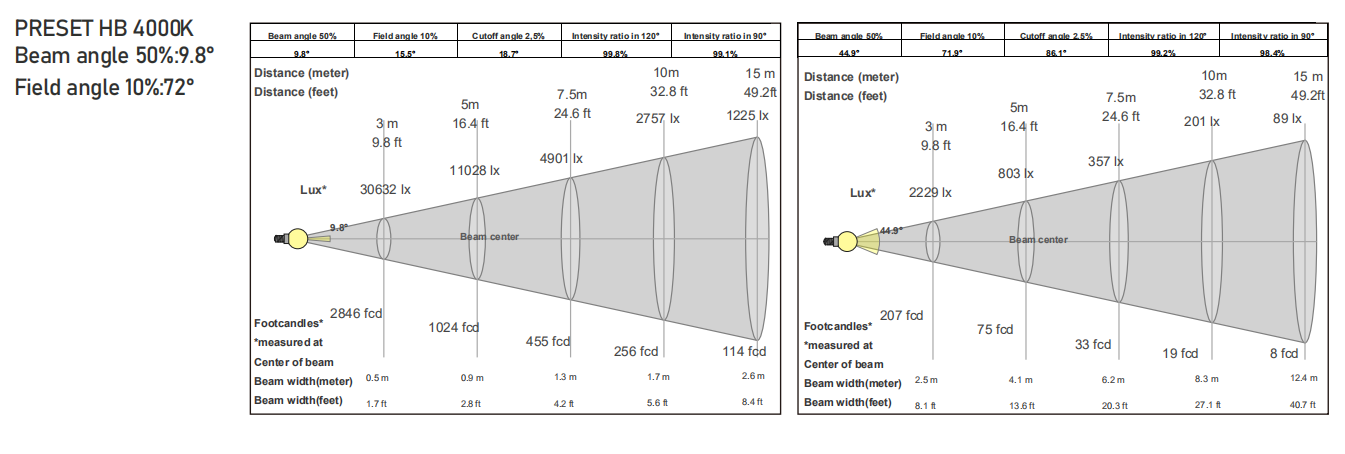

Lux: 11'028lx@5m@9,8°-803lx @5m@72°

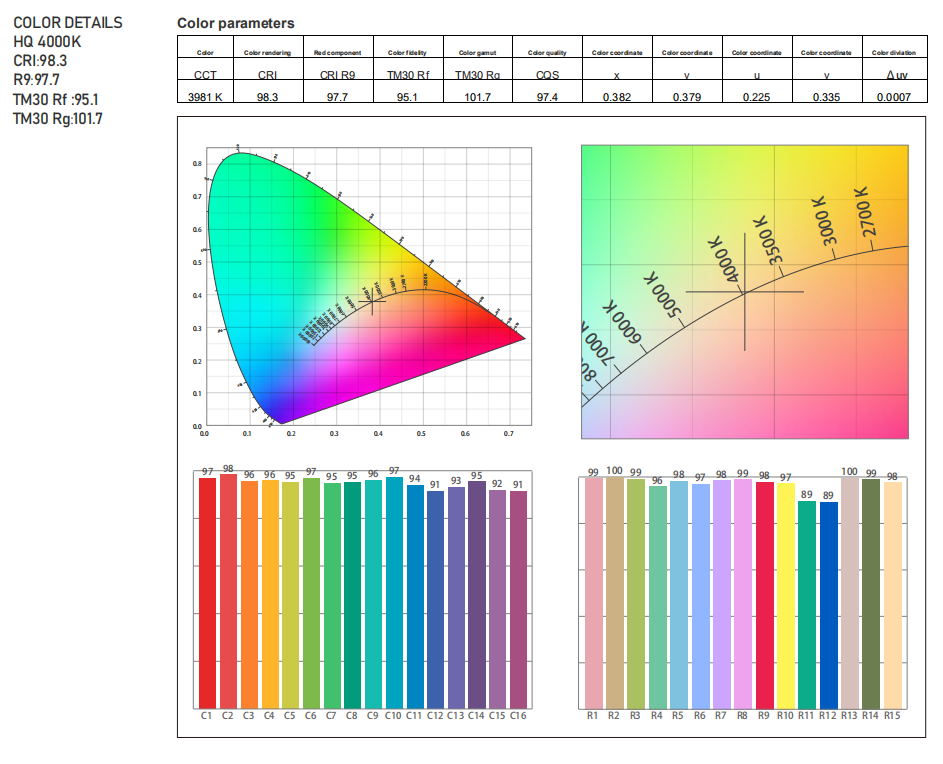

CRI 98.3 - R9 97.7 - TLCI 94 – TM30 101.7
Lens diameter: 186mm/7.3'' PMMA lens
Lens type: PMMA fresnel lens for a soft and broad-area flood lighting effect
Zoom range: 9,8° - 72°

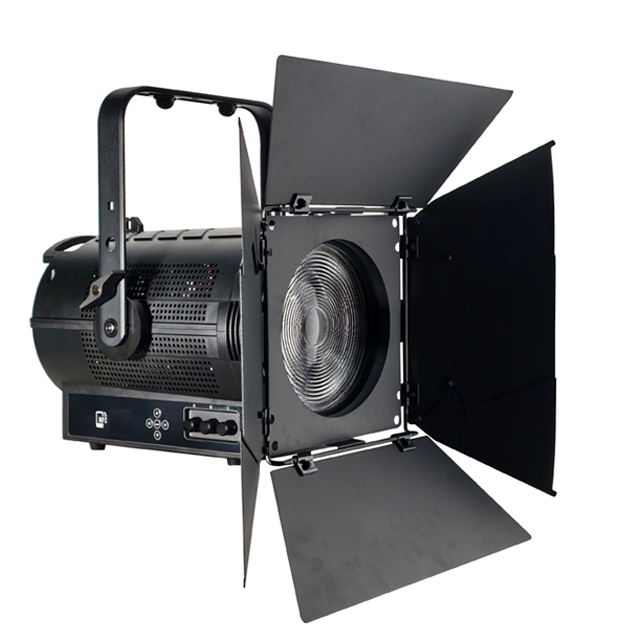

Accessories: Barndoor and gel frame included
FEATURES：
Dimmer: 0-100% linear dimmer without step or flickering
Dimmer curves: 4 different dimming curves can be selected
Strobe / shutter: 1-20Hz
PWM: Selectable 20K,25K,50K Hz
Zoom: Motorized
Colors: red, green, blue, cyan, lime, amber 6 colors for wide color gamut, can do simple RGB control or CTC channel
CCT: Preset conventional color temperature between 2,500K-10,000K
XY coordinates control
Tungsten emulation
Tint Correction: +/- magenta/green shift without changing CCT
CONTROL / CONNECTIONS：
DMX channels: 1/3/6/14/16/26/9/15CH
Protocols: DMX512, RDM

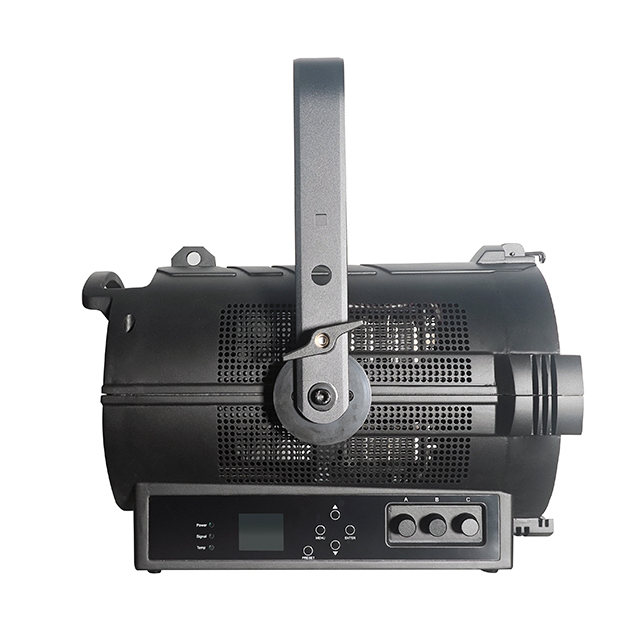

Display: 1.77''LCD Color display
Stand Alone: 3 knobs to control dimming, color, tint, zoom,CCT, XY coordinates separately
Master, Slave, Stand Alone mode
NFC/Blue tooth control: Optional

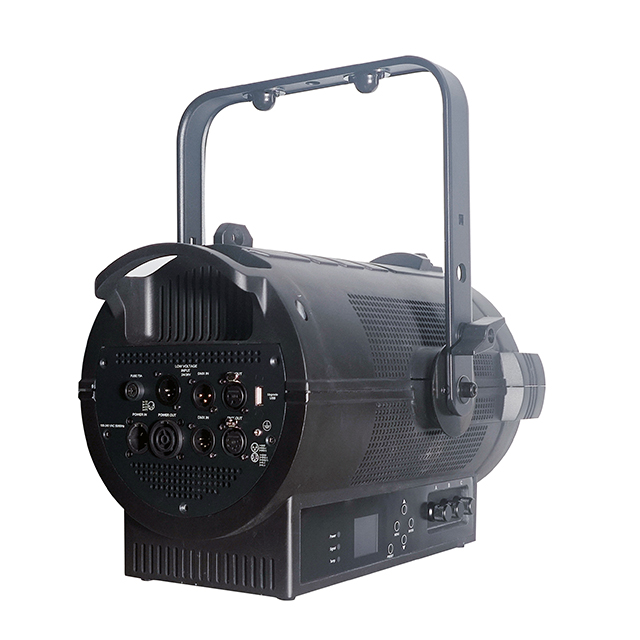

Power: Seetronics powerCON TRUE1 IN/OUT connectors
Signal: Seetronics XLR 3p+5p IN/OUT connectors
Low Voltage DC connector: XLR 4p for 24/36V
Firmware upgrade: via USB or DMX with UPBOX (not included)
ELECTRICAL：
Mains power supply: 100-240V - 50/60Hz
Low Voltage DC mains: 24/36V
Max power consumption (110V): 378W
Output (at 110V): 1 units on a single power line
Max power consumption (230V): 364W
Output (at 230V): 5 units on a single power line
Power factor: > 0,96
PHYSICAL：
IP rating: IP20
Cooling: heat pipe with low-noise fanHousing: Carbon Fiber
Finish: black
Operating temperature: Ta -20℃ to +45℃

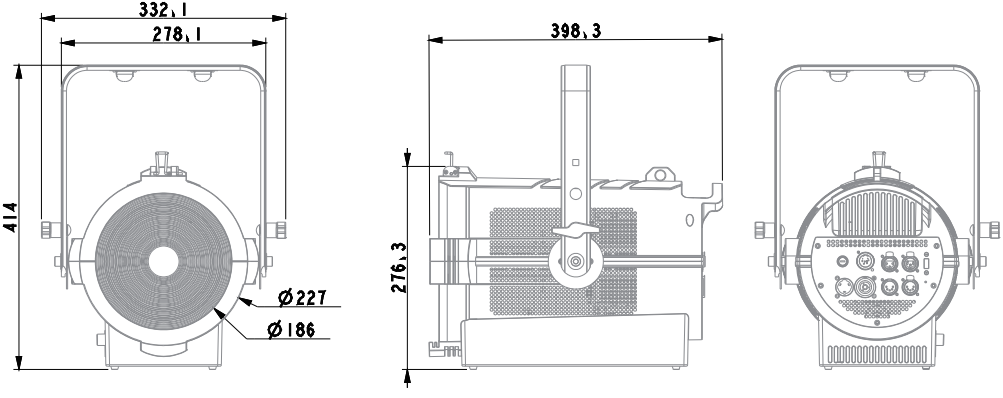

Dimensions (WxHxD): 332x419x398mm / 13''x16.49''x15.66''
Weight: 9,8kg / 21,61 lbs
CERTIFICATIONS ：
Compliance: CE, RCM, FCC, cTUVus
ITEMS INCLUDED：
1x 1.5 meter power cable
1x 3 meter DMX cable
1x filter frame
1x barndoor
1x safety cable
User Manual

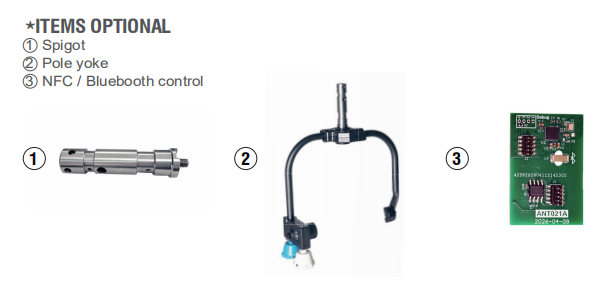

ITEMS OPTIONAL：
Spigot
Pole yoke
NFC / Bluebooth control
