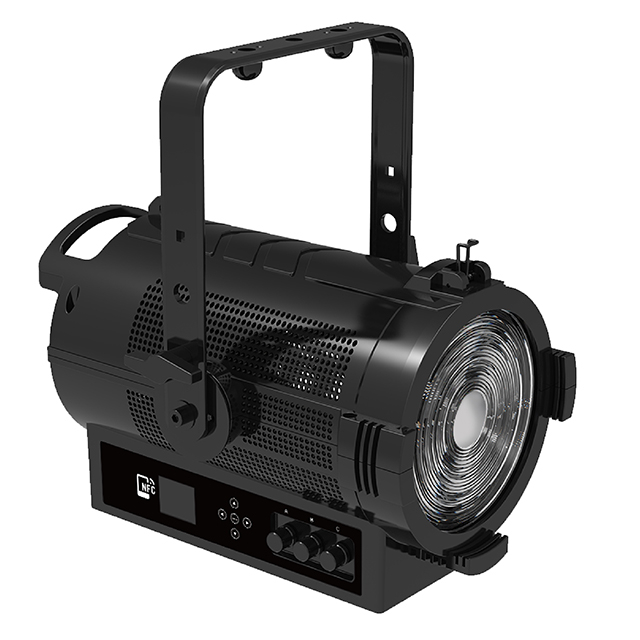

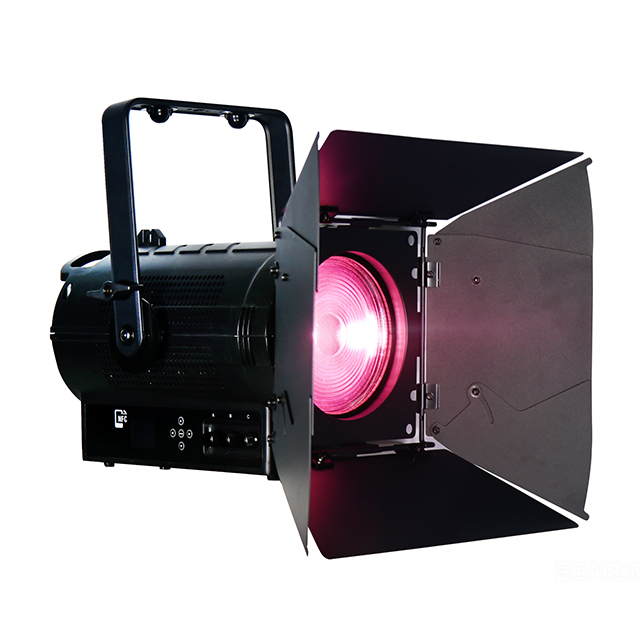

Type：150W LED Fresnel - RGBAL
OPTICS：
Source: 150W 6 colour LEDs source
Source life: > 50.000 h
Total Lumen Output: 3'681 lm@6,9°- 6'233 lm@68°(Goniometer)

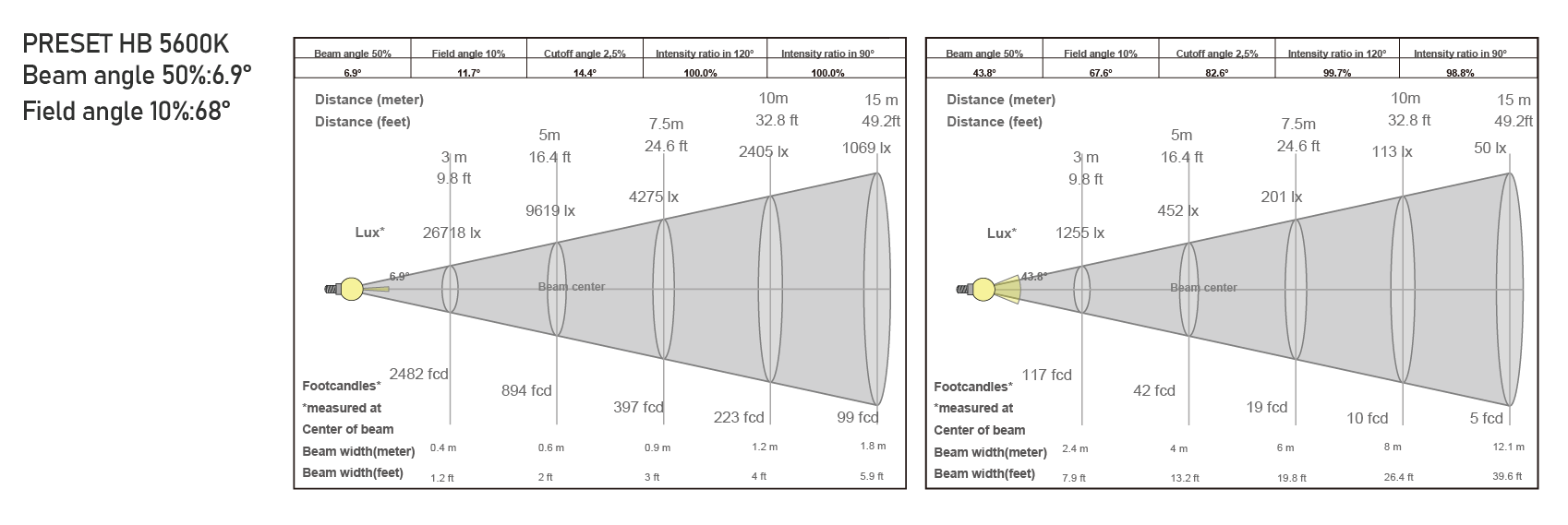

Lux: 9'619lx@5m@6,9°-452lx @5m@68°
CRI 96 - R9 94 - TLCI 92 – TM30 103
Lens diameter: 154mm/6'' PMMA lens
Lens type: PMMA fresnel lens for a soft and broad-area flood lighting effect
Zoom range: 6,9° - 68°
Accessories: Barndoor and gel frame included
FEATURES：
Dimmer: 0 - 100% linear dimmer without step or flickering
Dimmer curves: 4 different dimming curves can be selected
Strobe / shutter: 1-20Hz
PWM: Selectable 2K，20K，25K，50K Hz
Zoom: Motorized
Colors: red, green, blue, cyan, lime, amber 6 colors for
wide color gamut, can do simple RGB control or CTC channel
CCT: Preset conventional color temperature between，2,500K-10,000K
XY coordinates control
Tungsten emulation
Tint Correction: +/- magenta/green shift without changing CCT
CONTROL / CONNECTIONS：
DMX channels: 1/3/6/14/16/26/9/15CH
Protocols: DMX512, RDM
Display: 1.77''LCD Color display
Stand Alone: 3 knobs to control dimming, color, tint,zoom,CCT, XY coordinates separately
Master, Slave, Stand Alone mode
NFC/Blue tooth control: Optional

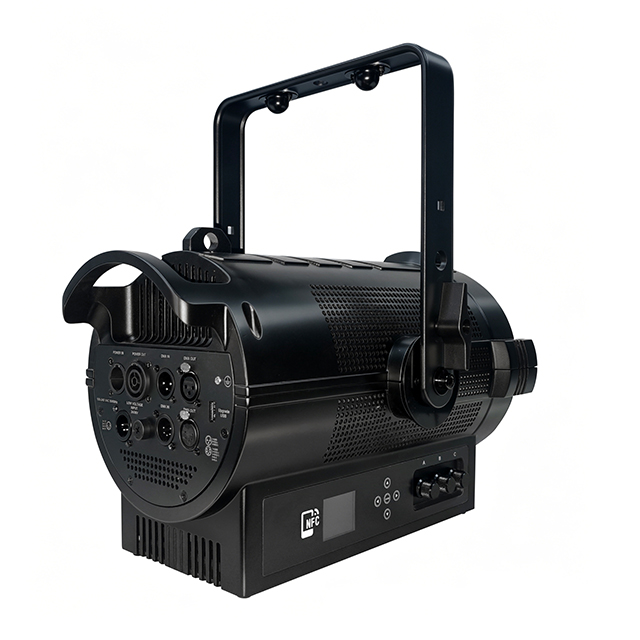

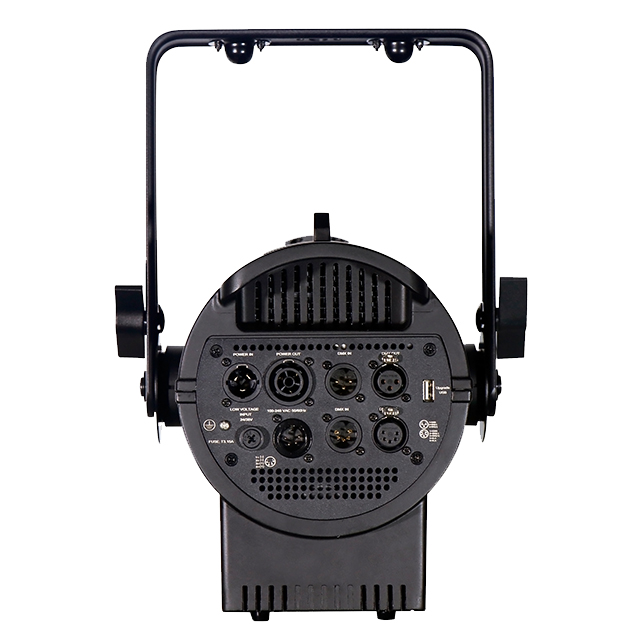

Power: Seetronics powerCON TRUE1 IN/OUT connectors
Signal: Seetronics XLR 3p+5p IN/OUT connectors
Low Voltage DC connector: XLR 4p for 24/36V
Features：
DMX channels:1/3/6/14/16/26/9/15CH
With 3 knobs to control dimming, color, magnification separately
RDM function is to change DMX address, display flip, show led voltage,current and power consumption info.
Software upgrade via DMX or USB port
Hibernation when lost DMX for preset time
Indicate temperature info of led
Fan speed auto change according to temperature
Dimmer Curve: 4 different dimmer curve (Linear/s-curve/square law/inverse square law)
Tint correction, red shift, 100% color calibration
Motorized Zoom to adjust beam angle
Tungsten simulation is ready
quick preset buttons for CCT
Flicker Free Operation
Firmware upgrade: via USB or DMX with UPBOX (not included)
ELECTRICAL：
Mains power supply: 100-240V - 50/60Hz
Low Voltage DC mains: 24/36V
Max power consumption (110V): 168W
Output (at 110V): 5 units on a single power line
Max power consumption (230V): 161W
Output (at 230V): 13 units on a single power line
Power factor: > 0,99
PHYSICAL：
IP rating: IP20
Cooling: heat pipe with low-noise fan
Housing: Carbon Fiber
Finish: black
Operating temperature: Ta -20℃ to +45℃

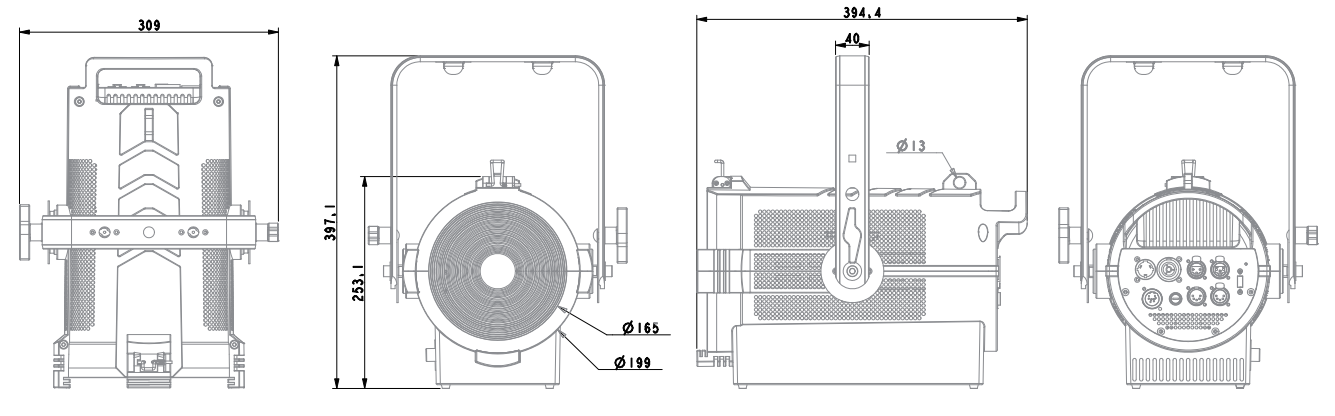

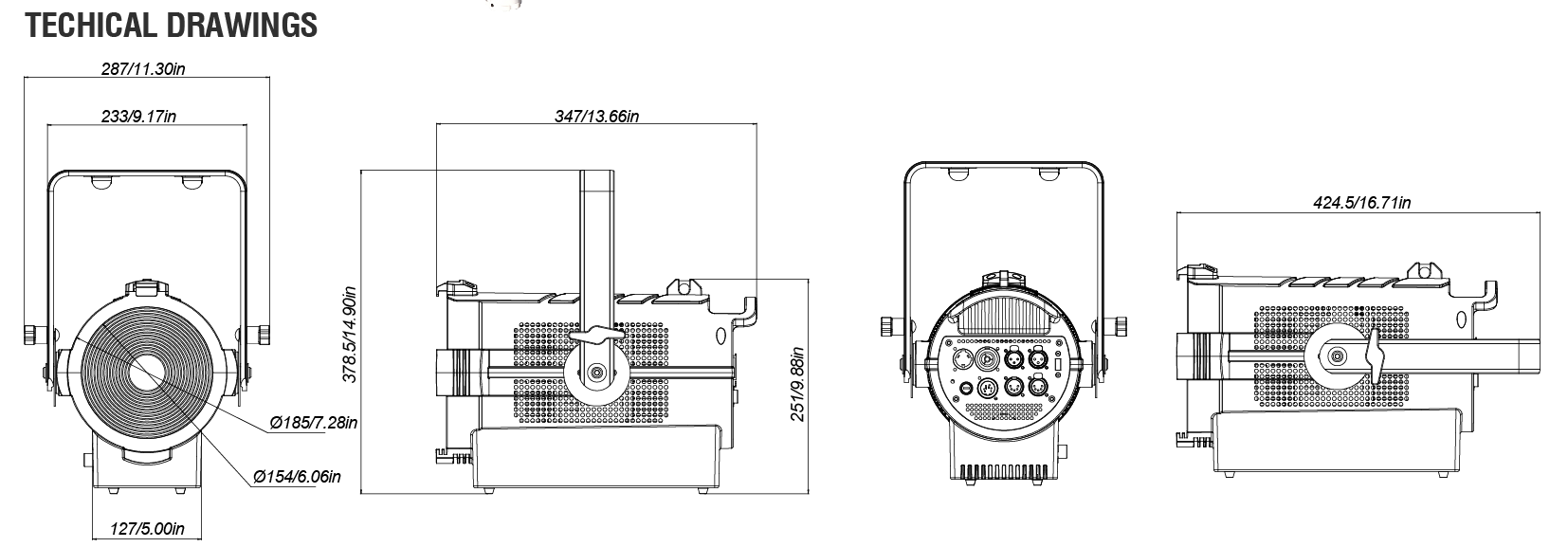

Dimensions (WxHxD): 287x378x347mm / 11.30''x14.90''x13.66''
Weight: 6,2kg / 13,67 lbs
CERTIFICATIONS：
Compliance: CE, RCM, FCC, cTUVus
ITEMS INCLUDED：
1x 1.5 meter power cable
1x 3 meter DMX cable
1x filter frame
1x barndoor
1x safety cable
User Manual
ITEMS OPTIONAL
Spigot
Pole yoke
NFC / Bluebooth control
