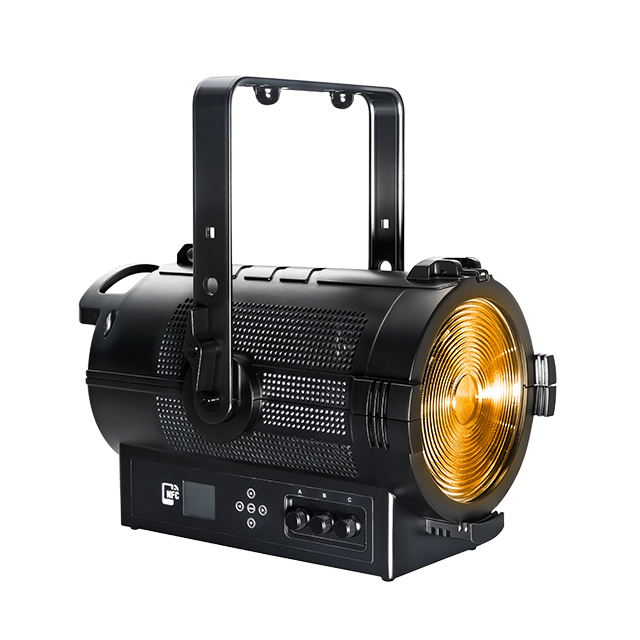

Type：LF160CW/WW 110W White LED Fresnel
OPTICS：
Source: 110W CW/110W WW White LEDs source
Source CCT:2700-6500 K
Source life: > 50.000 h
Total Lumen Output: 7’065 lm@13,5°- 11’543 lm@64° (Goniometer)

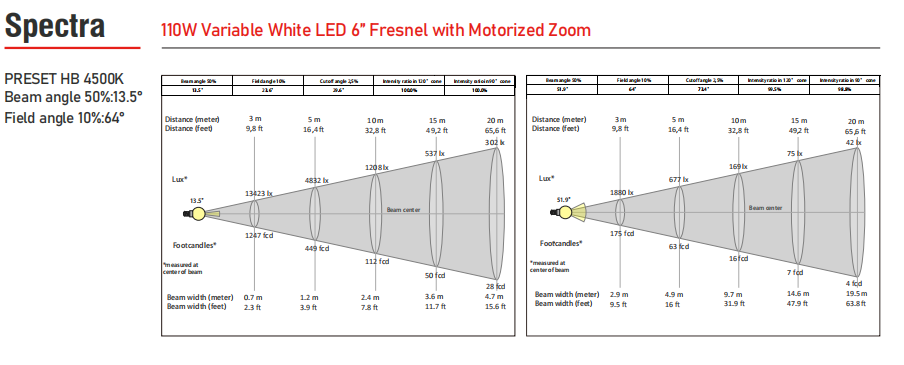

Lux:4’832lx@5m@13,5°-677lx @5m@64°

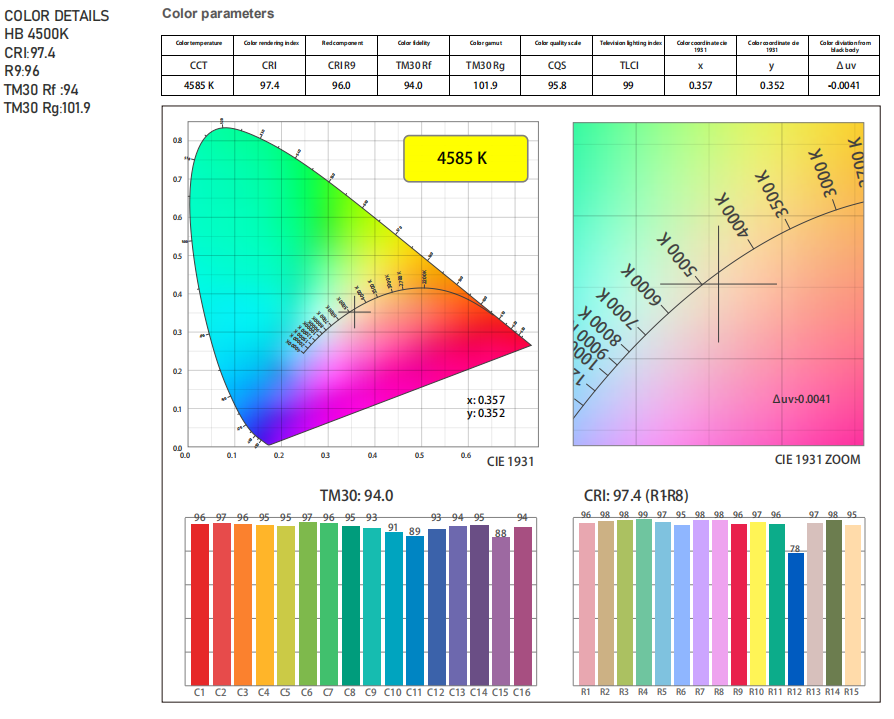

CRI 98 - R9 98 - TLCI 99 – TM30 102.1
Lens diameter: 154mm/6'' PMMA lens
Lens type: PMMA fresnel lens for a soft and broad-area flood lighting effect
Zoom range: 13,5° - 64°

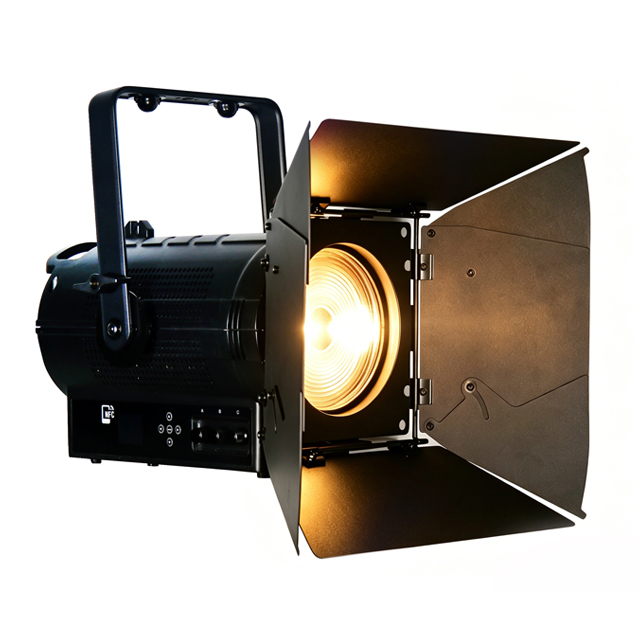

Accessories: Barndoor and gel frame included
FEATURES：
Dimmer: 0 - 100% linear dimmer without step or flickering
Dimmer curves: 4 different dimming curves can be selected
Strobe / shutter: 1-20Hz
PWM: Selectable 20K，25K，50K Hz
Zoom: Motorized
Colour mixing: tunable white
CCT: Preset conventional color temperature between 2,700K-6,500K
XY coordinates control
Tungsten emulation
Tint Correction: +/- magenta/green shift without changing CCT
CONTROL / CONNECTIONS：
DMX channels: 1/3/10CH
Protocols: DMX512, RDM
Display: 1.77’ LCD Color display
Stand Alone: 3 knobs to control dimming, color, tint, zoom,CCT, XY coordinates separately
Master, Slave, Stand Alone mode
NFC/Bluetooth control: Optional
Power: Seetronics powerCON TRUE1 IN/OUT connectors
Signal: Seetronics XLR 3p+5p IN/OUT connectors
Low Voltage DC connector: XLR 4p for 24/36V
Firmware upgrade: via USB or DMX with UPBOX (not included)
ELECTRICAL：
Mains power supply: 100-240V - 50/60Hz
Low Voltage DC mains: 24/36V
Max power consumption (110V): 160W
Output (at 110V): 5 units on a single power line
Max power consumption (230V): 155W
Output (at 230V): 13 units on a single power line
Power factor: > 0,99
PHYSICAL：
IP rating: IP20
Cooling: heat pipe with low-noise fan
Housing: Carbon Fiber
Finish: black
Operating temperature: Ta -20℃ to +45℃
Dimensions (WxHxD): 287x378x347mm / 11.30’’x14.90’’x13.66’’
Weight: 6,3 kg / 13,89 lbs
CERTIFICATIONS：
Compliance: CE, RCM, FCC, cTUVus
ITEMS INCLUDED：
1x 1.5 meter power cable
1x 3 meter DMX cable
1x filter frame
1x barndoor
1x safety cable
User Manual

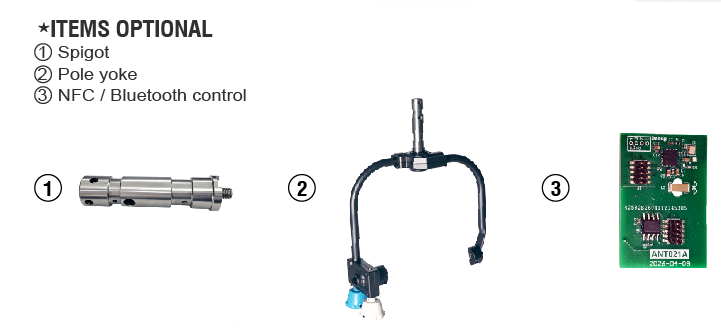

ITEMS OPTIONAL
Spigot
Pole yoke
NFC / Bluetooth control
