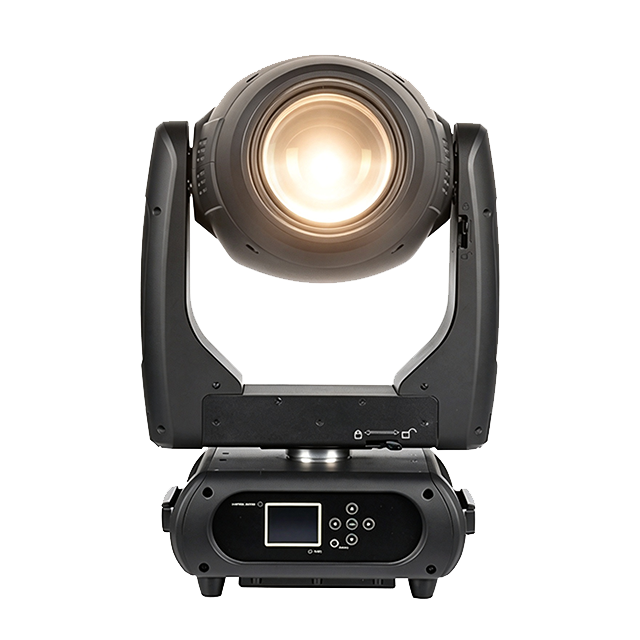

EVA420H 420w 3in1 white LED Moving Head light
Home » Products » LED Moving Head » EVA420H 420w 3in1 white LED Moving Head light

Product Category

EVA420H 420w 3in1 white LED Moving Head light

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
  • EVA420H

  • Ablelite

  • 9405499000


Type:BEAM/SPOT/WASH - 3in1


  • Light source:  Advanced 420w white led

  • Led life: 20.000 hours

  • Luminous Flux: 8658lumen, 110000lux@2.5m

  • Control: Remote on/off via DMX

  • Ballast: switching mode power supply

Optical System:

  • Beam angle: 5° to 50 °


  • Pan: 630° (4.4 sec) or 540°(3.9 sec), Tilt: 233° (2.3 sec)

  • 16-bit resolution

  • Auto repositioning


  • 8+open, interchangeable, indexable and bidirectional rainbow effect

  • Linear CMY+CTO

  • Color bounce


  • Outside ¢27mm, inside ¢20mm

  • 7+ open custom interchangeable position for  rotating gobo wheels

  • 6+open fixed gobos

  • Real indexable and gobo shaking

  • Distinctive gobo animation effect


  • DMX channels: 29/30/20/22

  • Linear CMY+CTO

  • Color wheel: 8+1 colors

  • Fixed gobo wheel : 6+1 gobos

  • Rotating gobo wheel : 7+1 gobos

  • Motorized auto focus

  • Full range 0-100% dimmer

  • Various strobe

  • Frost

  • Rotating 3 facets prism

  • Fast speed iris

  • Beam from 5° to 50 °

  • RDM function to change DMX address, display flip, X/Y Reverse and so on

  • RDM read voltage, current, power consumption of lamp

  • Software upgrade via DMX

  • Hibernation when lost DMX for preset time

  • Indicate temperature info of base and led

  • Fan speed auto change according to temperature


  • 2.4inch super nice LCD display with friendly English/Chinese/French/Spanish menu

  • Auto lock

  • Flip

  • Back-up communicating IC


  • Max power consumption: 590W

  • Powercon in ,3+ 5 pins DMX

  • Power supply: Electronic auto-ranging

  • Input voltage range: 100–240V, 50-60Hz
