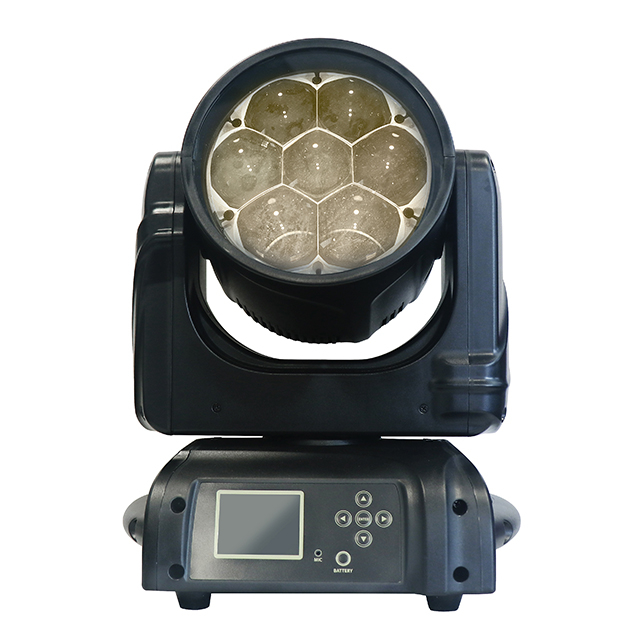

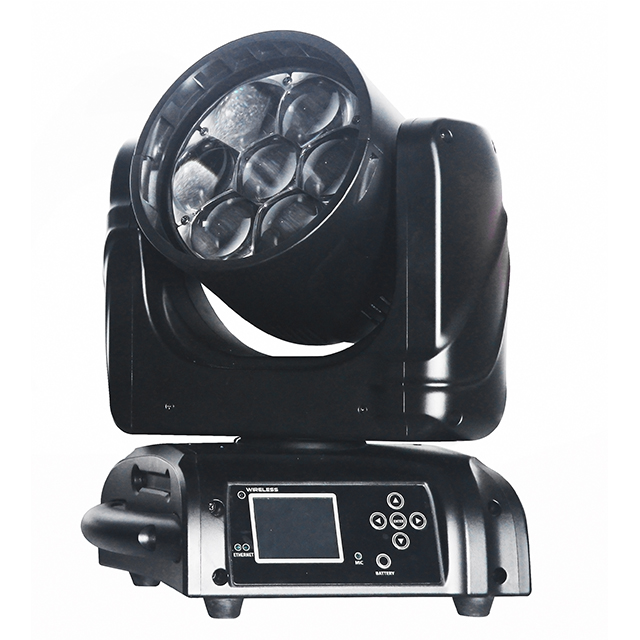

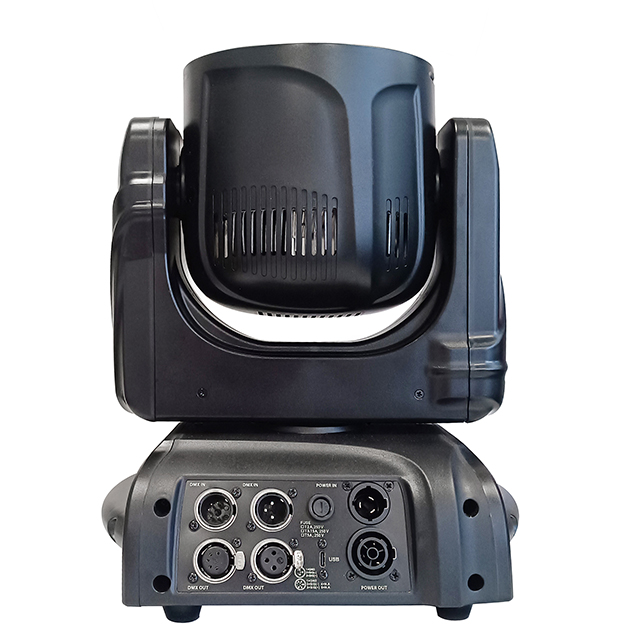

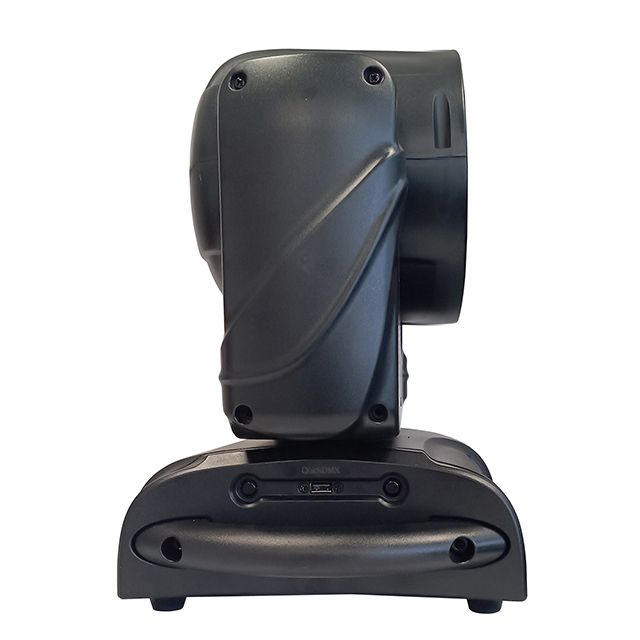

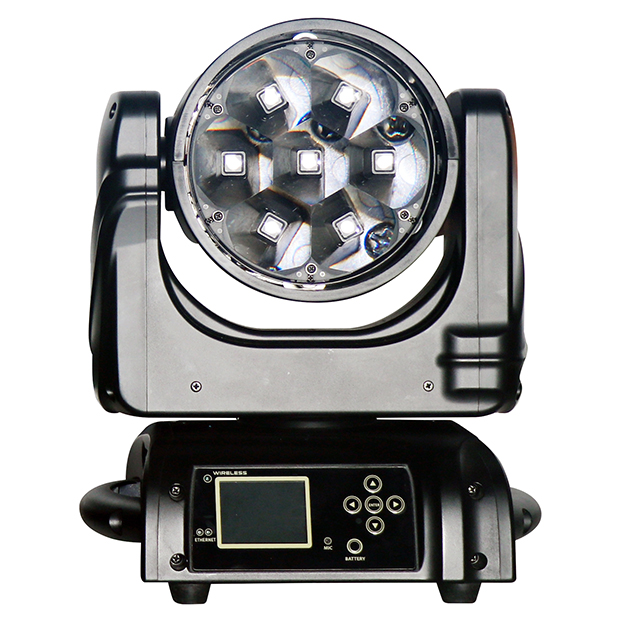

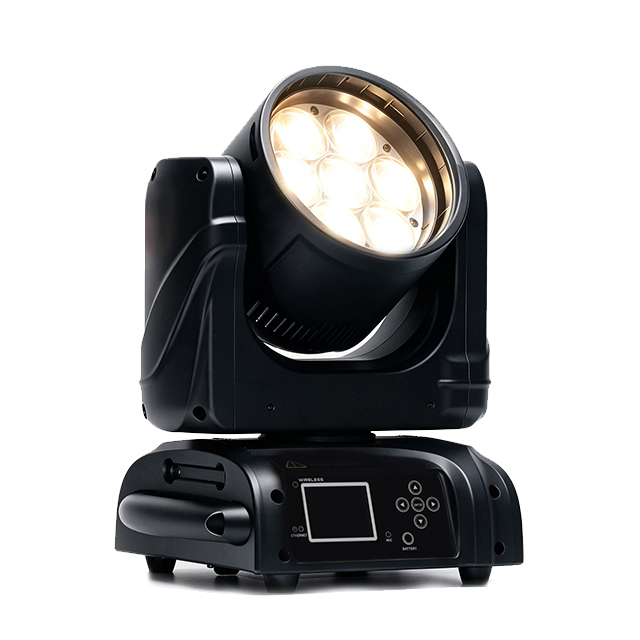

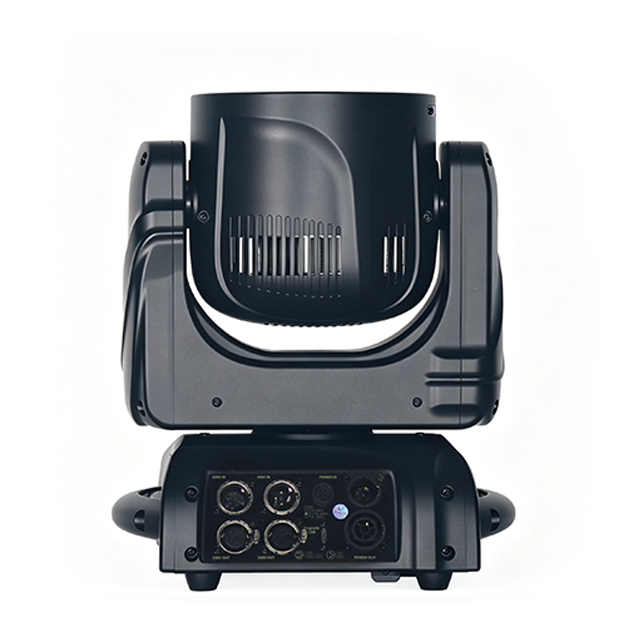

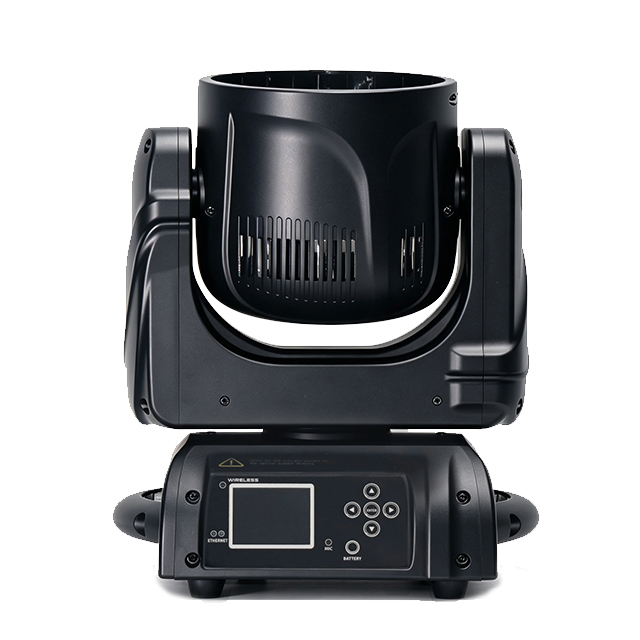

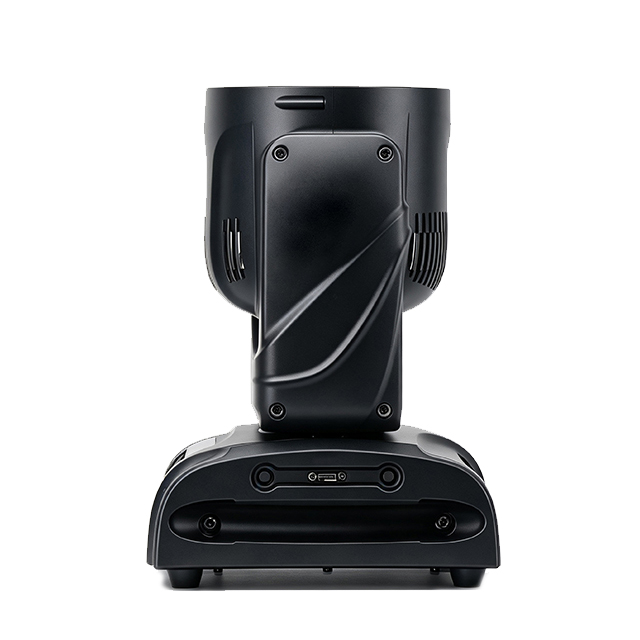

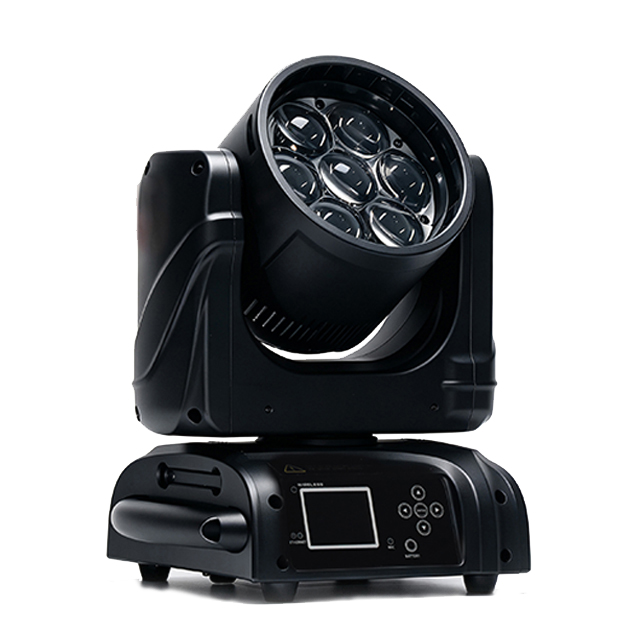

A74HCL 7x40W RGB+WW HIGH CRI LED WASH ZOOM HEAD

Type：HIGH CRI LED WASH ZOOM HEAD

Specifications：

• Light source:7pcs 40W 4in1 RGB+WW leds，PIXEL dimming

• Led life:60.000hours

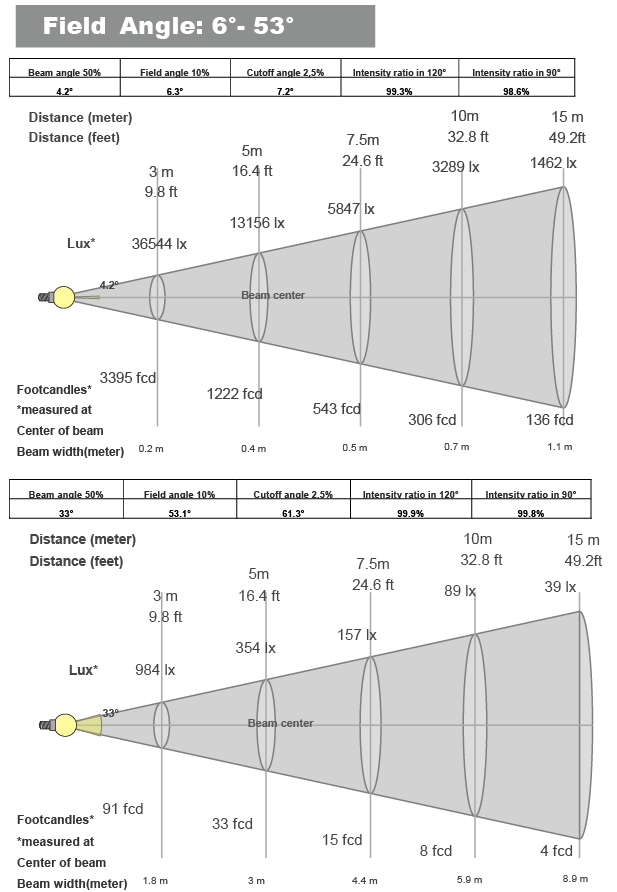

• Luminous Flux: 2751lumen,(6°) 36544 lux - (53°)984 lux@all@3m

• Control: Remote on/off via DMX

• Ballast: switching mode power supply

Optical System：

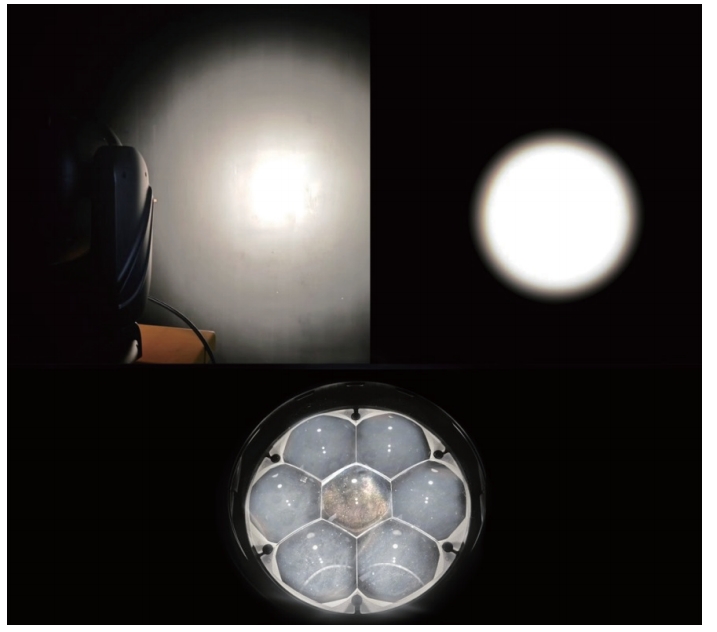

• Field angle: 6° to 53°

X/Y:

• Pan: 630° (3.04 sec) or 540°(2.61 sec), Tilt: 265° (1.03 sec)

• 16-bit resolution

• Auto repositioning

• 3 phase motor for crazily fast and quiet movement

Features：

• DMX channels:Main 18/25/37; Pixel 8/28; Baisc 21

• Super fast, smooth and silent movement

• 7pcs LED, RGB+WW pixel dimming

• RGB+WW four colors mixing to create vivid,saturated and uniform color effect

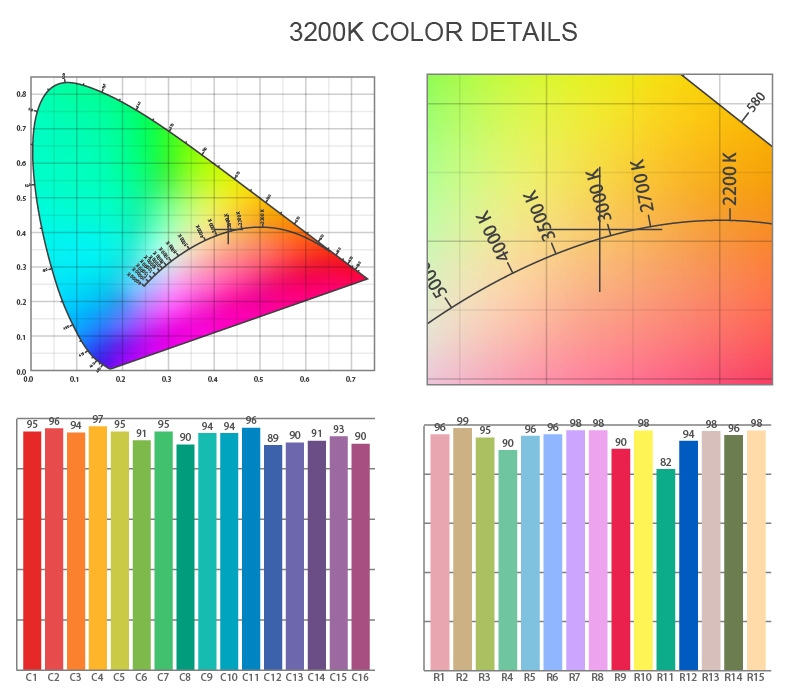

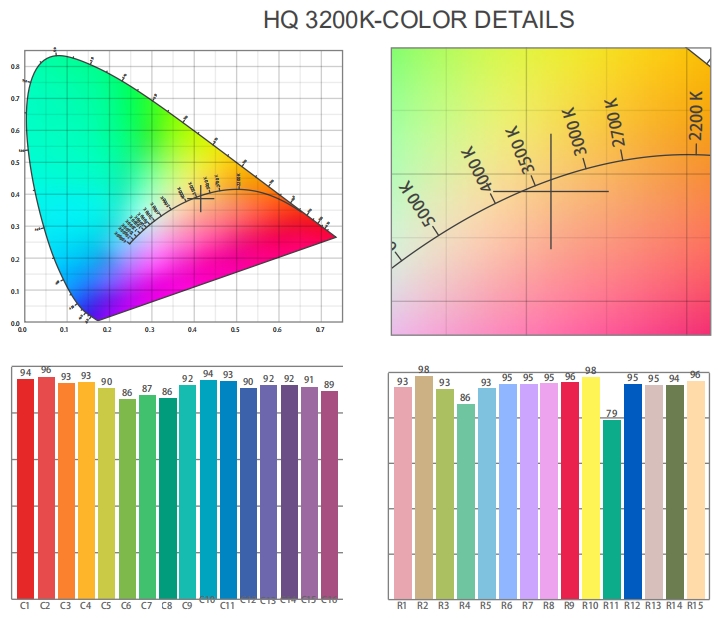

• Pre-set color temperature at 3000K~10000K

• Zoom from 6° to 53°

• Full range 0-100% dimmer

• Various strobe

• RDM function to change DMX address, display flip, X/Y Reverse and so on

• Software upgrade via DMX or USB

• Hibernation when lost DMX for preset time

• Indicate temperature info of base

• Fan speed auto change according to temperature

• Heat pipe for cooling

Display：

• 2.4inch super nice LCD display with friendly English/ Chinese/French/Spanish menu

• Auto lock

• Flip

• Back-up communicating IC

Power：

• Max power consumption:251W

• Power supply: Electronic auto-ranging

• Input voltage range: 100–240V, 50-60Hz

Dimension and Weight ：

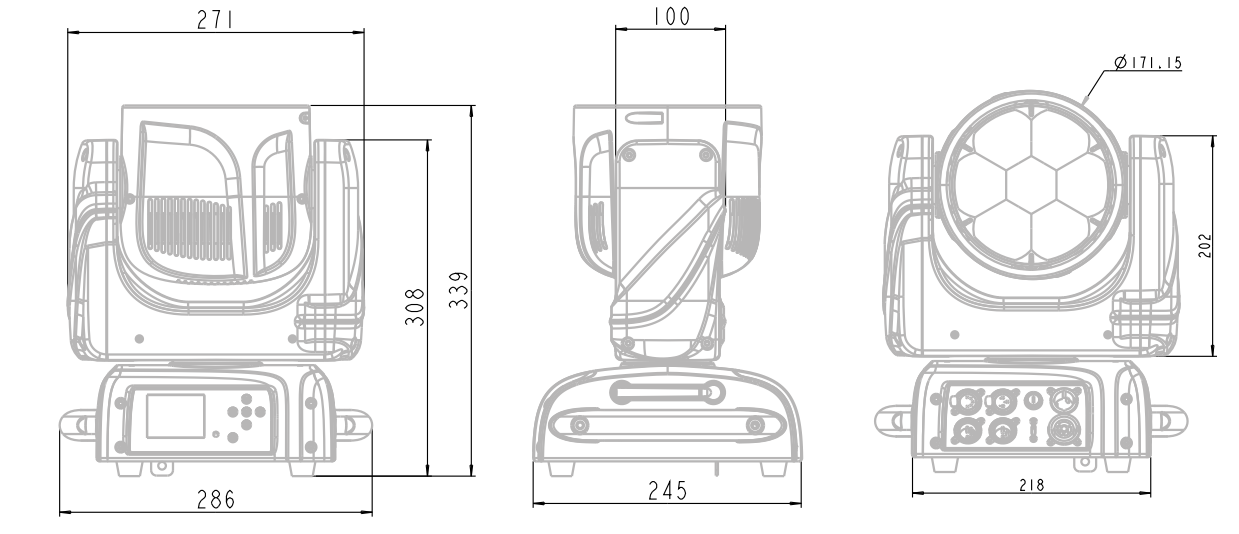

• Fixture: 286x245x372 mm

• Packing: 440X330X325 mm

• Net Weight: 7.4 KG

• Gross Weight: 8 KG
