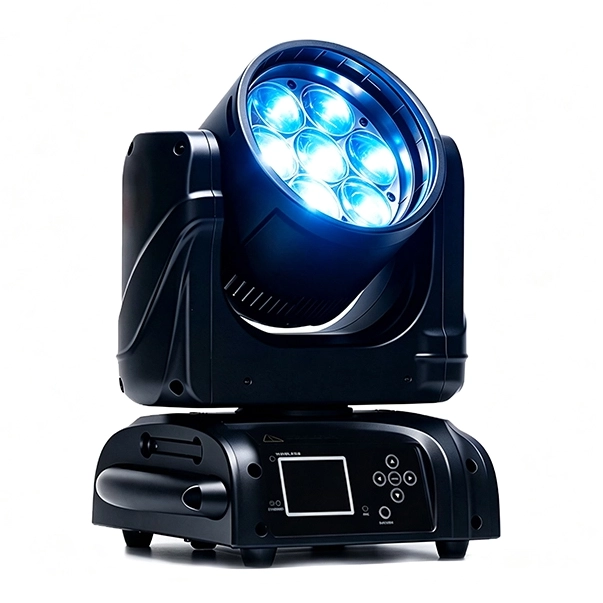

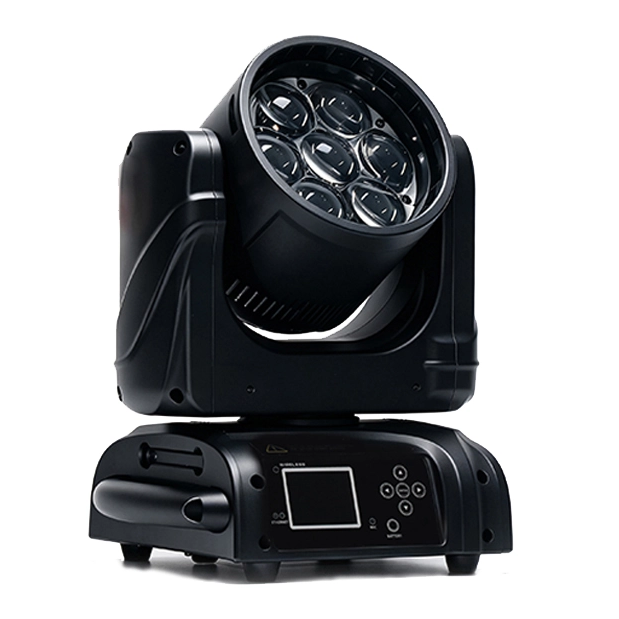

A74Z 7PC OSRAM 40W led wash Moving Head light
Home » Products » LED Moving Head » A74Z 7PC OSRAM 40W led wash Moving Head light

Product Category

A74Z 7PC OSRAM 40W led wash Moving Head light

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
  • A74Z

  • Ablelite




  • Light source:7pcs OSRAM 40W 4in1 leds,PIXEL dimming

  • Led life:60.000hours

  • Luminous Flux:  (6°) 1'322 lm - (50°) 2'320lm@all

  • Control: Remote on/off via DMX

  • Ballast: switching mode power supply

Optical System:

  • Beam angle: 6° to 50°


  • Pan: 630° (3.04 sec) or 540°(2.61 sec), Tilt: 265° (1.03 sec)

  • 16-bit resolution

  • Auto repositioning

  • 3 phase motor for crazily fast and quiet movement


  • DMX channels: 26/38/8/28

  • Super fast, smooth and silent movement

  • 7pcs LED, RGBW pixel dimming

  • RGBW four colors mixing to create vivid,saturated and uniform color effect

  • Pre-set color temperature at 2000K-2700K, 3200K, 4200K, 5600K and 8000K

  • Zoom from 6° to 50°

  • Full range 0-100% dimmer

  • Various strobe

  • RDM function to change DMX address, display flip, X/Y Reverse and so on

  • Software upgrade via DMX

  • Hibernation when lost DMX for preset time

  • Indicate temperature info of base

  • Fan speed auto change according to temperature

  • Heat pipe for cooling


  • 2.4inch super nice LCD display with friendly English/ Chinese/French/Spanish menu

  • Auto lock

  • Flip

  • Back-up communicating IC


  • Max power consumption:280W

  • Power supply: Electronic auto-ranging

  • Input voltage range: 100–240V, 50-60Hz

Dimension and Weight :

  • Fixture: 286x245x372 mm

  • Packing: 440X330X325 mm

  • Net Weight: 7.4 KG

  • Gross Weight: 8 KG

A74Z effect
