LF130CW/WW Tunable White LED fresnel
Home » Products » Theatre Lighting » LF130CW/WW Tunable White LED fresnel

Product Category

LF130WW/CW
LF130WW/CW LF130WW/CW
LF130WW/CW LF130WW/CW
LF130WW/CW LF130WW/CW
LF130WW/CW LF130WW/CW
LF130WW/CW LF130WW/CW

loading

LF130CW/WW Tunable White LED fresnel

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
  • LF130CW/WW

  • ABLELITE

Availability:
Quantity:

Type:LED  Fresnel  - Cool White/Warm White


Specifications

  • Light source:130W white LED

  • Color Temperature: 5600K/2800K

  • CRI:>97,R9>95

  • LED life: 50,000 hours

  • Luminous Flux:9283lumen

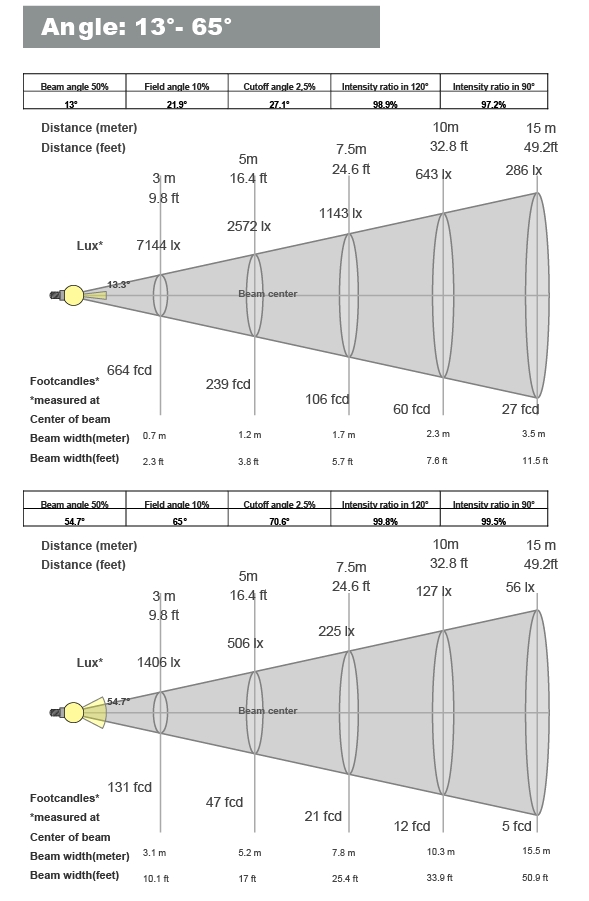

  • Lux:1406lux@3m@65°,7144ux@3m@13°


Optics:

  • Beam angle:13°-65°(Manual)

  • Lens Type: HQ screw thread optics


Body:

  • Body: Sturdy aluminum body conceived for long-time durability

  • Body Color: Black/White


Features:

  • DMX channels:11CH

  • RDM function to change DMX address, display flip and remote monitor

  • Software upgrade via DMX or USB

  • Indicate temperature info of led

  • Fan speed auto change according to temperature

  • Various strobe

  • Dimmer Curve: 4different dimmer curve available(Exponential, Linear, INV-Exp, and S-Curve)

  • Control:Via DMX 512 protocol


Display:

  • Display: LCD high resolution display with friendly English menu

  • Flip


Power:

  • Max power consumption:139W

  • Powercon in and out ,5 pins dmx in and out

  • Power supply: Electronic auto-ranging

  • Input voltage range: 100–240V, 50-60Hz



1

LF130CW&WW
