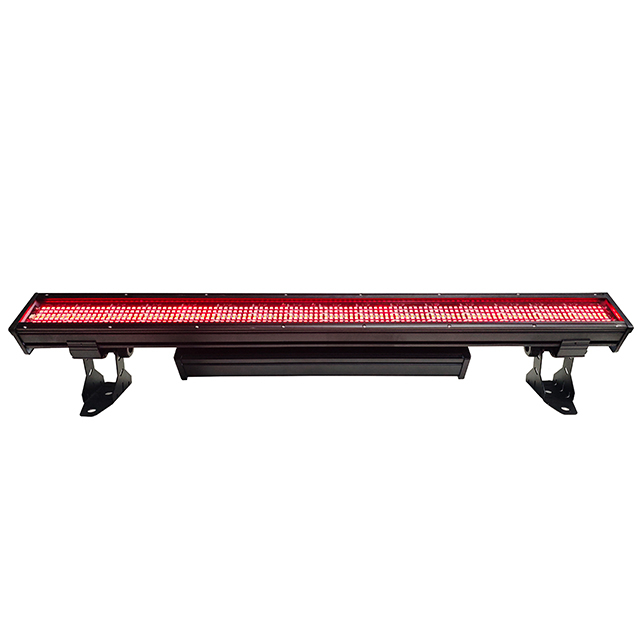

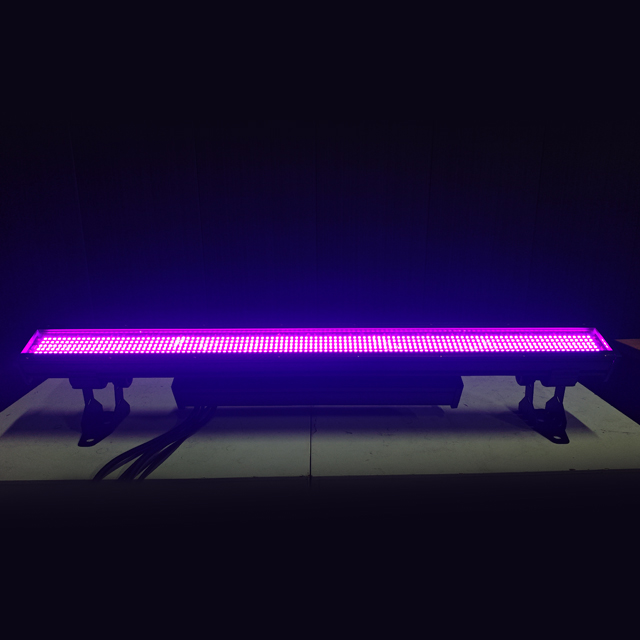

BAR1000STIP
Ablelite
9405499000
| Availability: | |
|---|---|
| Quantity: | |
Light Source and optics:
Power:AC100~240V 50/60HZ
Power:600W
Color Light:32 segments 672 x 0.5W RGB LED
White Light: 16 segments, 112 x 3W LED
Control Panel: Touch display screen, 4 touch buttons
Control Modes: DMX512, self-propelled, master-slave, sound control, with RDM function
Art-Net, sACN/MagicQ software control can be added.
Channels: CH17,CH07,CH15,CH21,CH39,CH112, CH17,CH33,CH65,CH68,CH117,CH70
Dimming: 16-bit 0~100% linear dimming
Features: Marquee + strobe + electronic atomization
Splicing Method: Multiple units can be spliced with pins
Power Connection: Hand-in-hand three-core pure copper 2.5mm² power cable, standard length: 1.5m on one side, 1.3m external lead
Signal Connection: Hand-in-hand shielded waterproof signal cable, standard length: 1.5m on one side, 1.3m external lead
Working Environment of the Lamp: Maximum ambient temperature: 50°C, minimum working temperature: -30°C
Maximum Surface Temperature: 47°C
Operating Temperature: -30°C ~ 50°C
Strobe Frequency: 1~30HZ
Appearance: Die-cast aluminum, black
Waterproof Grade: IP66
Dimensions: Length: 985mm, Width: 100mm, Height: 150mm
Net Weight : 8.65KG
Flight Case Specifications: 8 units per case
Flight Case Dimensions: Length 99cm, Width 10.5cm, Height 23cm
