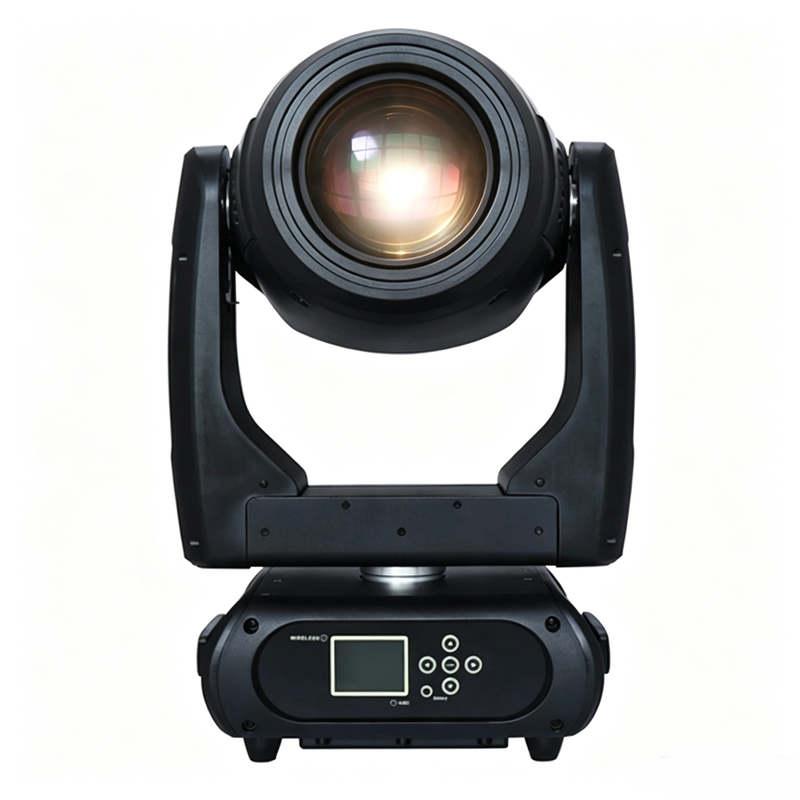

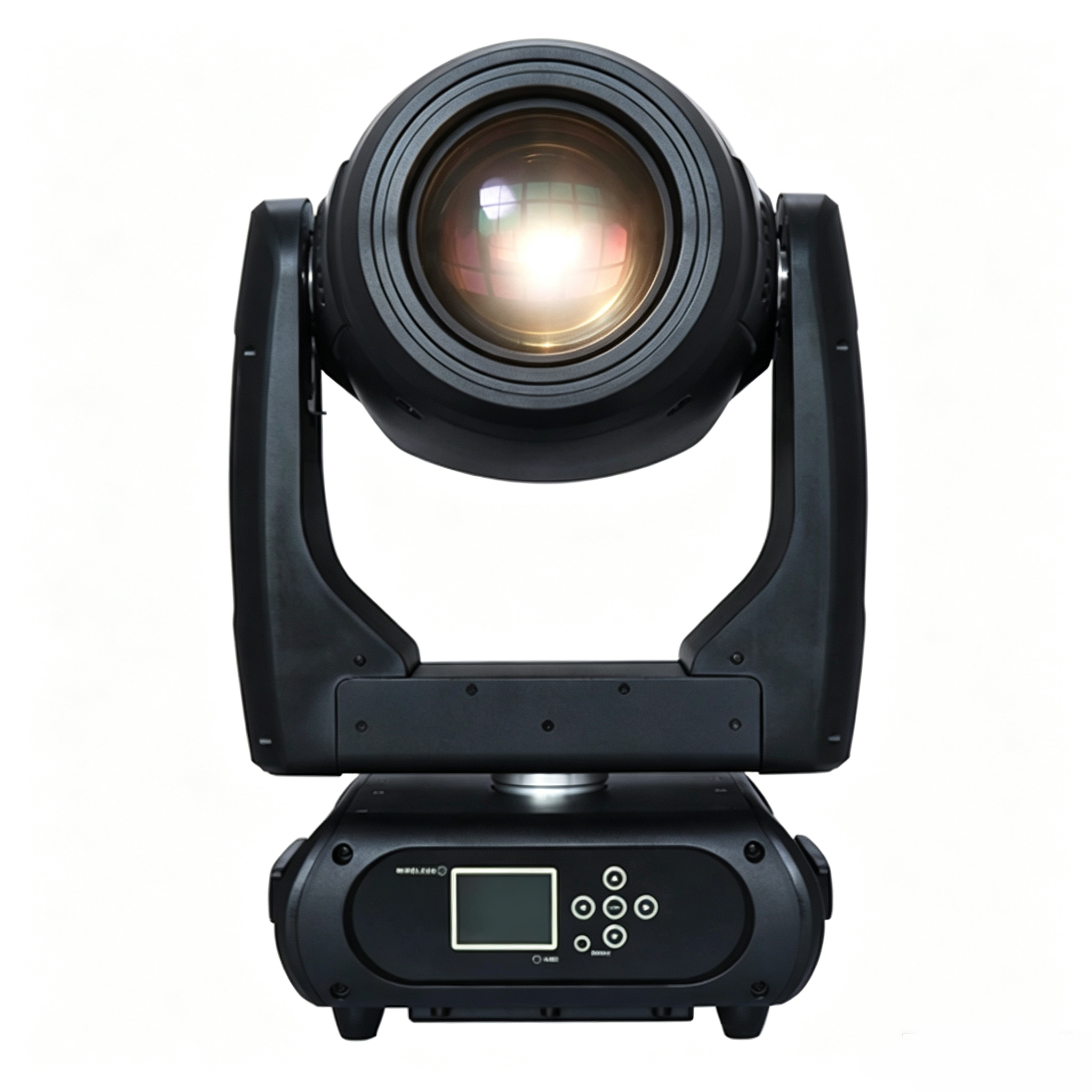

EVA281H 280W OSRAM 3in1 lamp Moving Head light
Home » Products » HID Moving Head » EVA281H 280W OSRAM 3in1 lamp Moving Head light

Product Category

EVA281H 280W OSRAM 3in1 lamp Moving Head light

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
  • EVA280H

  • Ablelite

  • 9405499000

Availability:
Quantity:

Type:BEAM/SPOT/WASH - 3in1


Specifications

  • Light source: OSRAM Sirius HRI 281W discharge lamp

  • Lamp life: 2.000 hours

  • Luminous Flux: 10435lumen, 699635lux@5m@2°beam,31390lux@5m@5.5°spot mode

  • Control: Remote on/off via DMX

  • Ballast: switching mode power supply


Optical System:

  • Beam angle:2°-10° beam,5.5°-23° spot


X/Y:

  • Pan: 630° (3.8 sec) or 540°(3.18 sec),Tilt: 265° (2.8 sec)

  • 16-bit resolution

  • Auto repositioning


Colors:

  • 13+open, interchangeable, indexable and bidirectional rainbow effect

  • Color bounce


Gobos:

  • Rotating gobo wheel: 9 (galss)+open

  • Static gobo wheel: 14+open

  • Real indexable and gobo shaking

  • Distinctive gobo animation effect


Features:

  • DMX channels: 22/20/23/14/16

  • Color wheel: 13+1 colors

  • Rotating gobo wheel: 9+1 gobos

  • Static gobo wheel: 14+open

  • Zoom: 2°-10° beam, 5.5°-23° spot

  • Motorized focus

  • Full range 0-100% dimmer

  • Various strobe

  • Frost

  • 6-Linear+8 facets prism

  • RDM function to change DMX address, display flip, X/Y Reverse and so on

  • RDM read voltage, current, power consumption of lamp

  • Software upgrade via DMX

  • Hibernation when lost DMX for preset time

  • Indicate temperature info of base,lamp

  • Fan speed auto change according to temperature


Display:

  • 2.4inch super nice LCD display with friendly English/Chinese/French/Spanish menu

  • Auto lock

  • Flip

  • Back-up communicating IC


Power:

  • Max power consumption: 430W

  • Powercon in ,3+5pins DMX

  • Power supply: Electronic auto-ranging

  • Input voltage range: 100–240V, 50-60Hz
